Heritage Bridge - Barbados

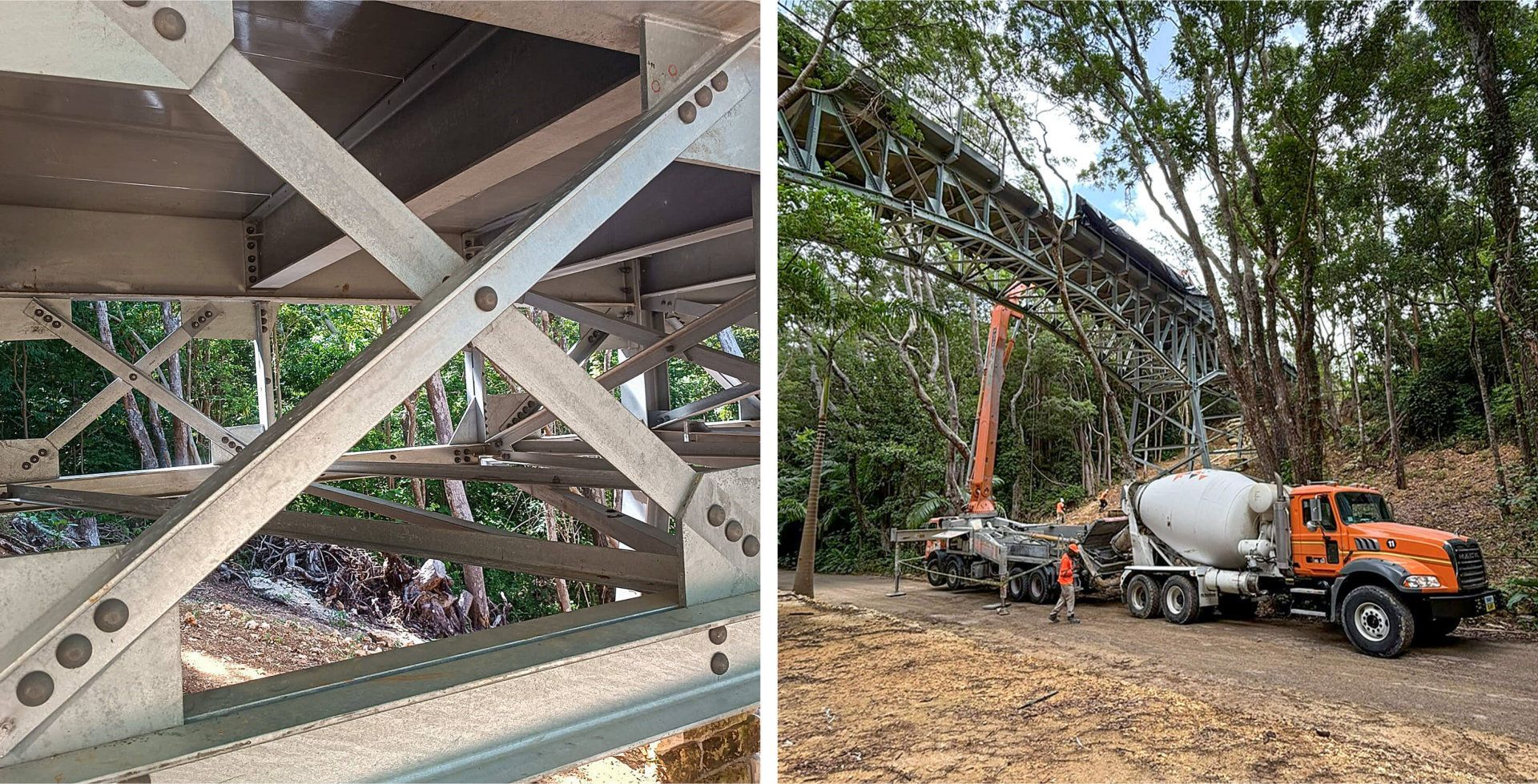

Hot dip galvanised to the highest specification
In February 2020, we were approached to design a bridge for a heritage railway extension. The project required a steel bridge to cross a tree filled avenue, with concept drawings provided for a Victorian-style structure using angle and channel sections.
The site was exposed to Eastern Trade winds, creating a salt-laden environment, so the steelwork had to be hot dip galvanised to the highest specification. Additionally, the bridge is situated in an ancient, wooded area so installation had to be carried out with minimal disruption to the local environment. To achieve this the bridge needed to fit specific dimensions: an overall length of 82.94m, a clear height of 12.06m (with an overall height of 13.63m), and an overall width of 4.6m.

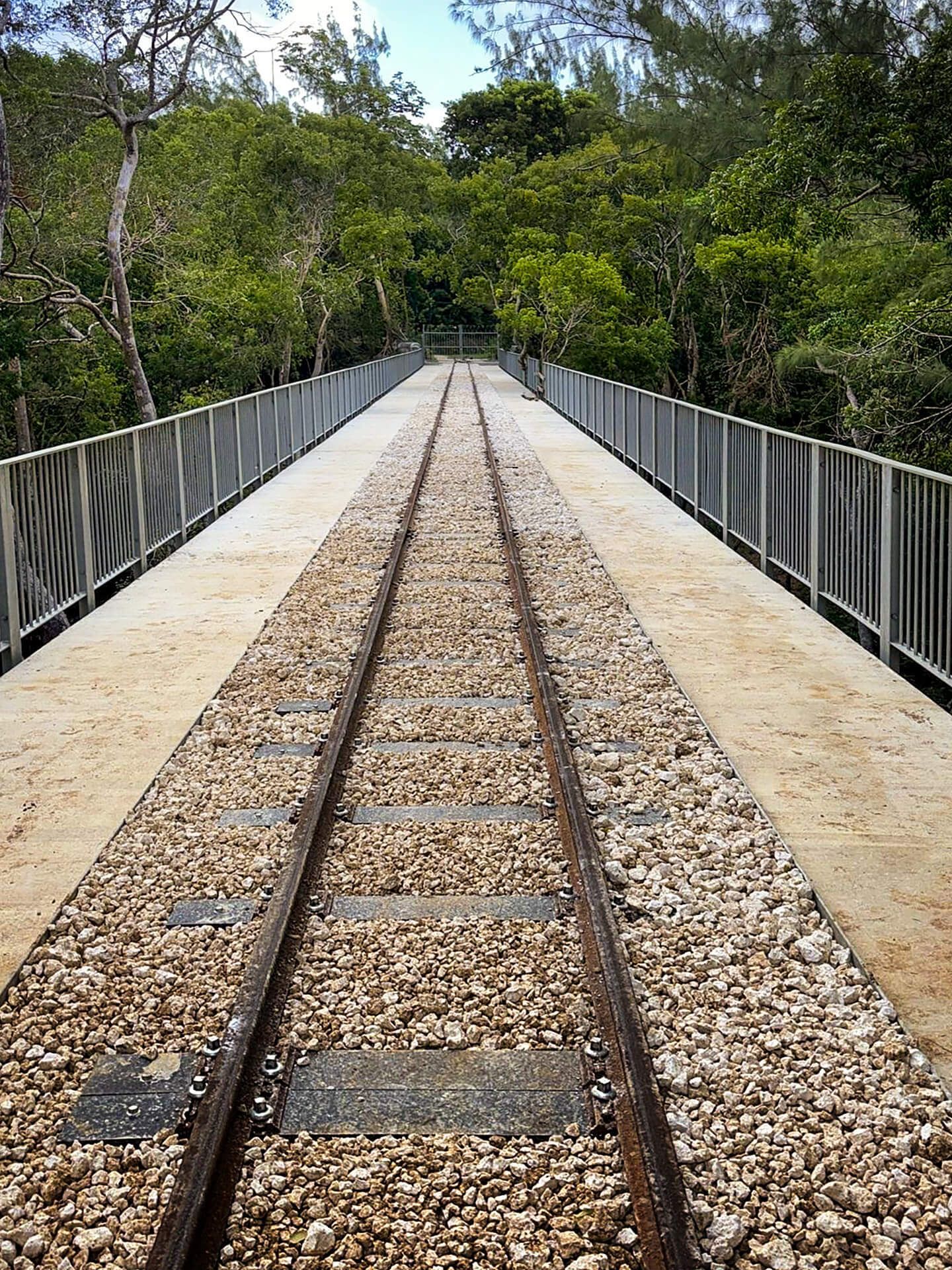

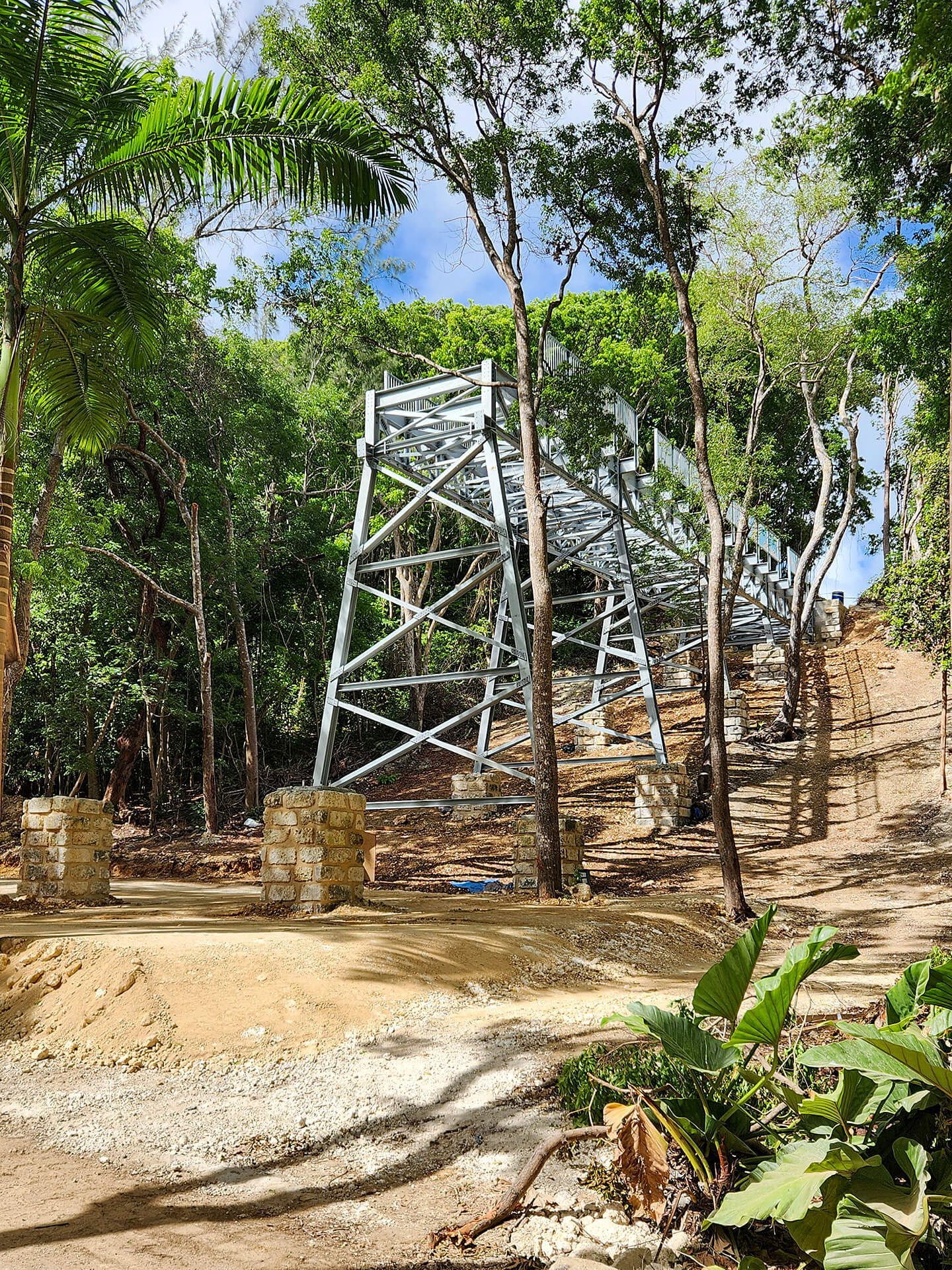

After a period of development and fine-tuning, we designed, drew, manufactured, shipped, and erected the bridge to full expectations in the summer of 2024. The bridge has a heritage appearance, achieved with modern methods to make it look old.

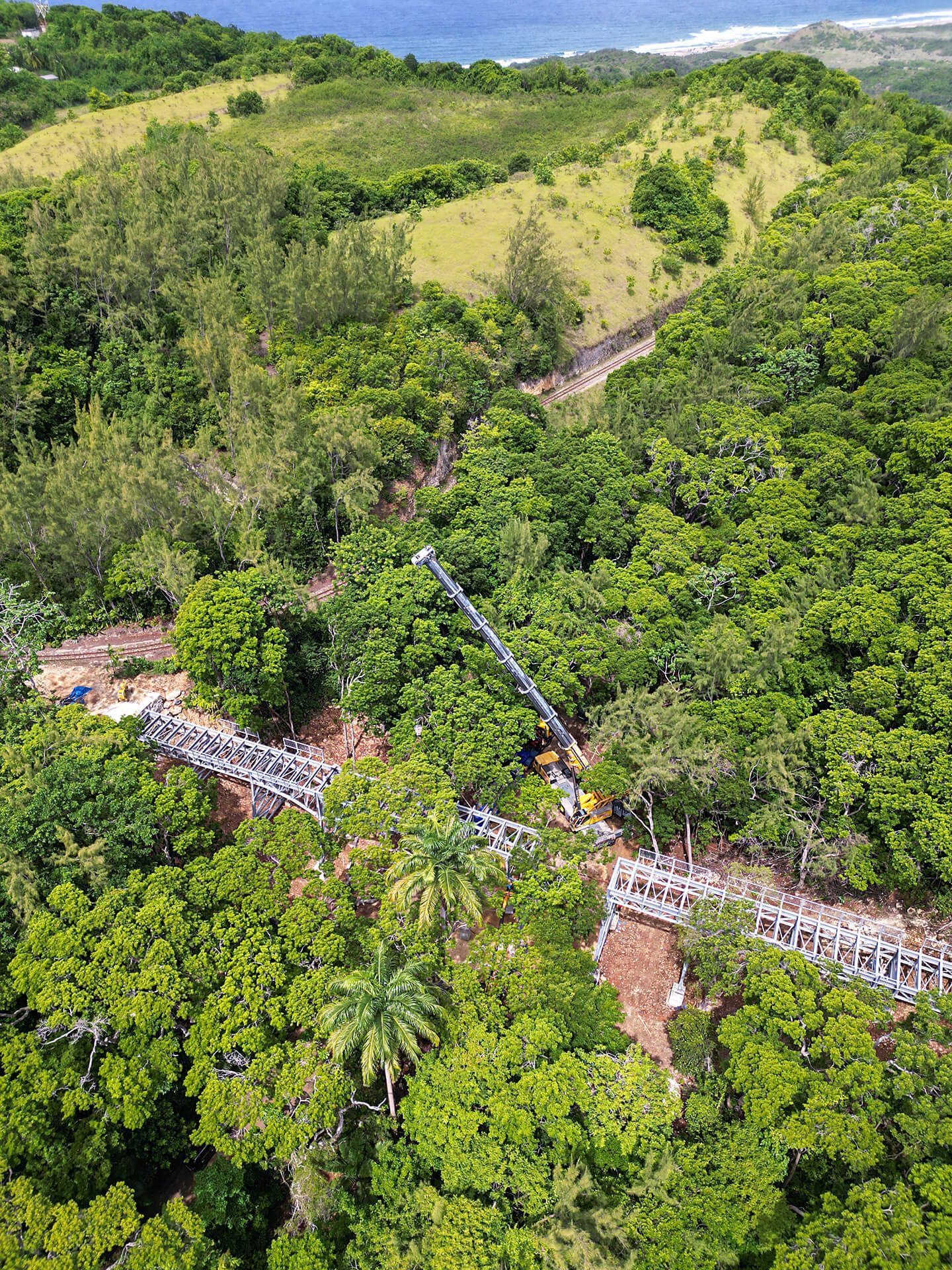

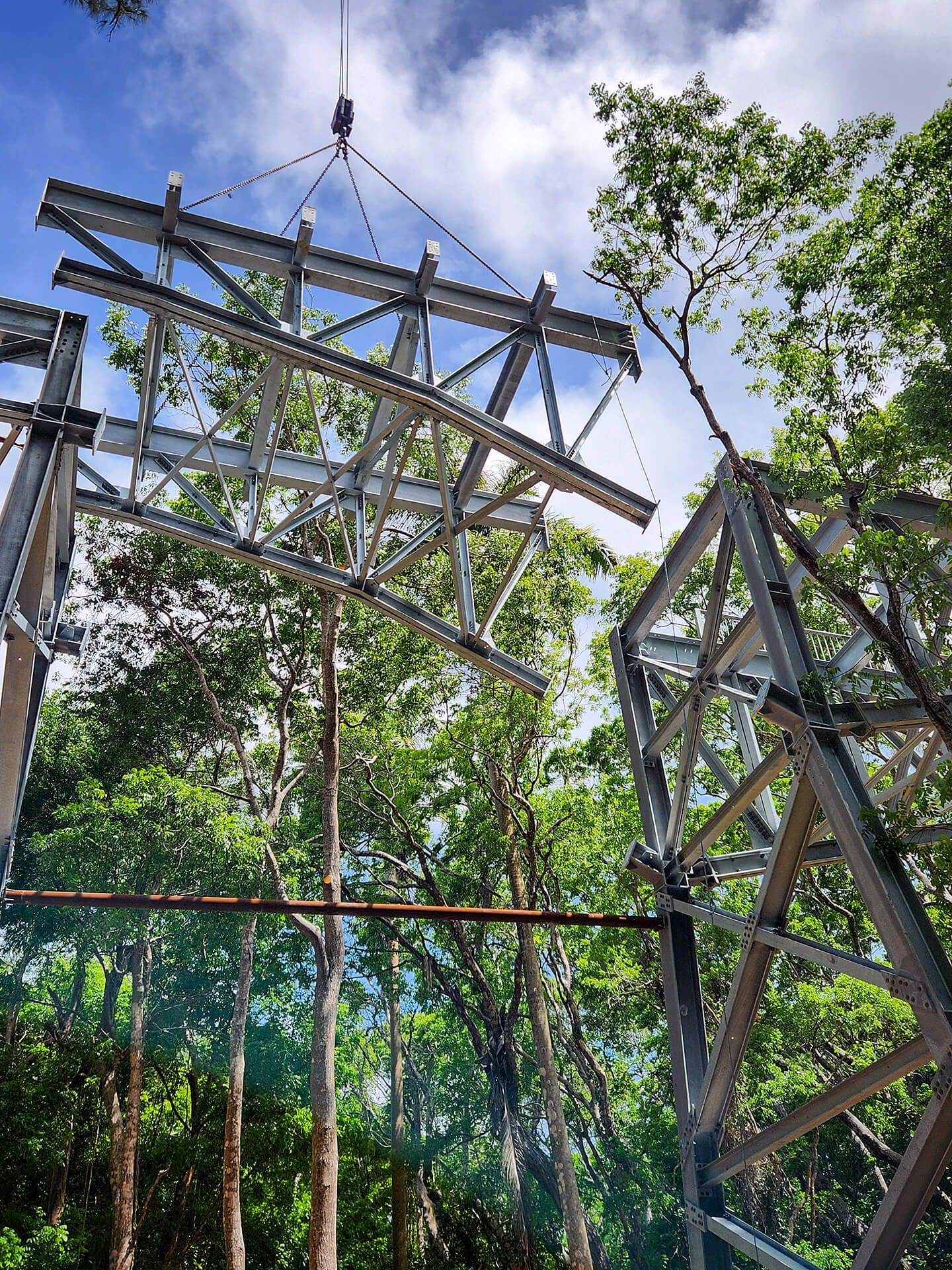

The installation was particularly challenging as we had to minimise foliage cutback and lift the bridge into position between the trees.
The client expressed satisfaction, highlighting the bridge s importance to the heritage railway, saying, We are very pleased with the outcome, and it really is a key part of the success of the railway line.
This project showcases our commitment to delivering high-quality, bespoke solutions that meet our clients unique needs while preserving the environment.
Ref: 119058
| REIDsteel Elements | |
|---|---|
| Structural Design / Detailing | . |
| Structural Steelwork | . |
| Packing & Shipping | . |
| Installation | . |
