Ministry of Finance - Belize

Designed to withstand hurricane winds and seismic activity

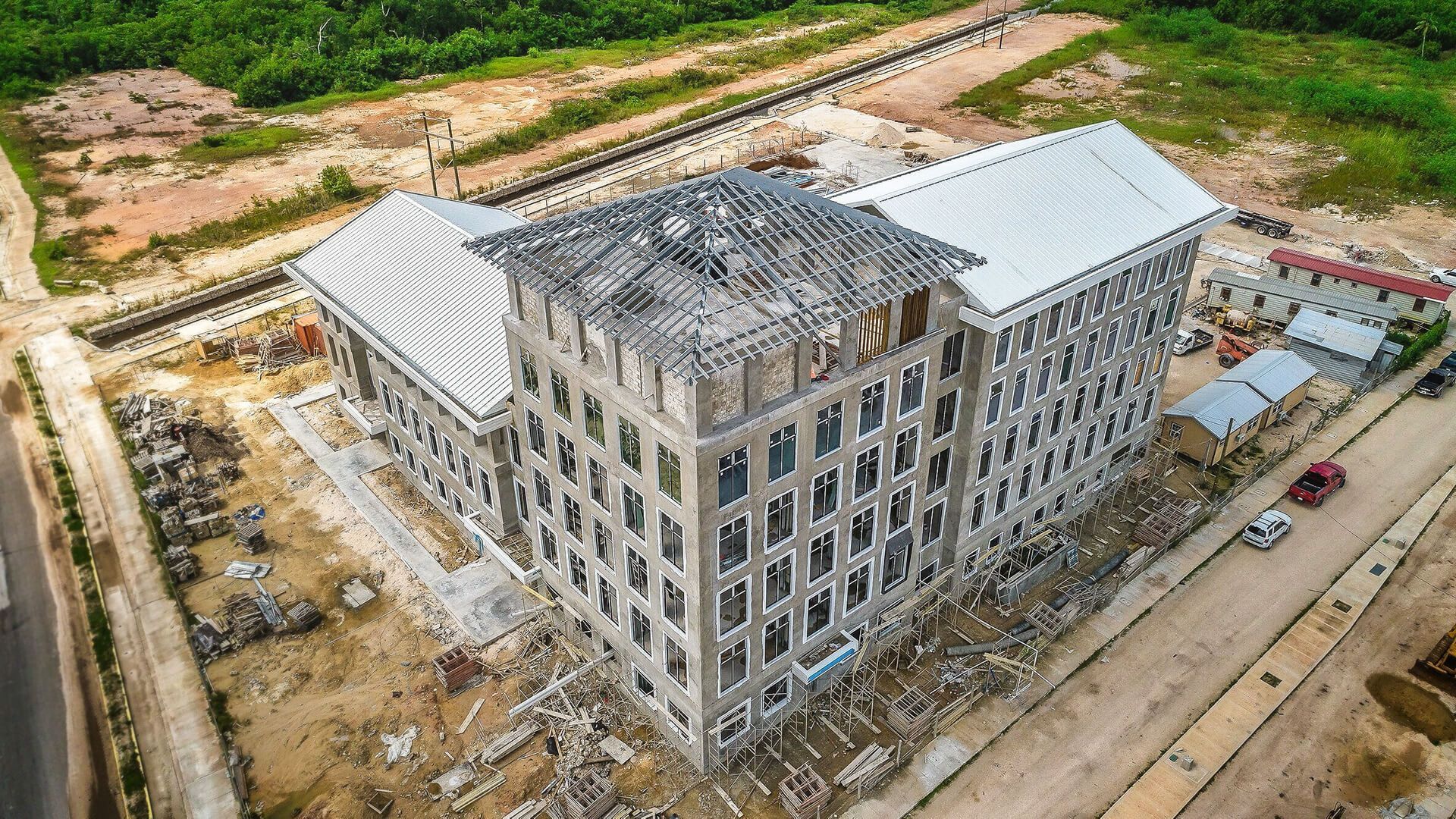

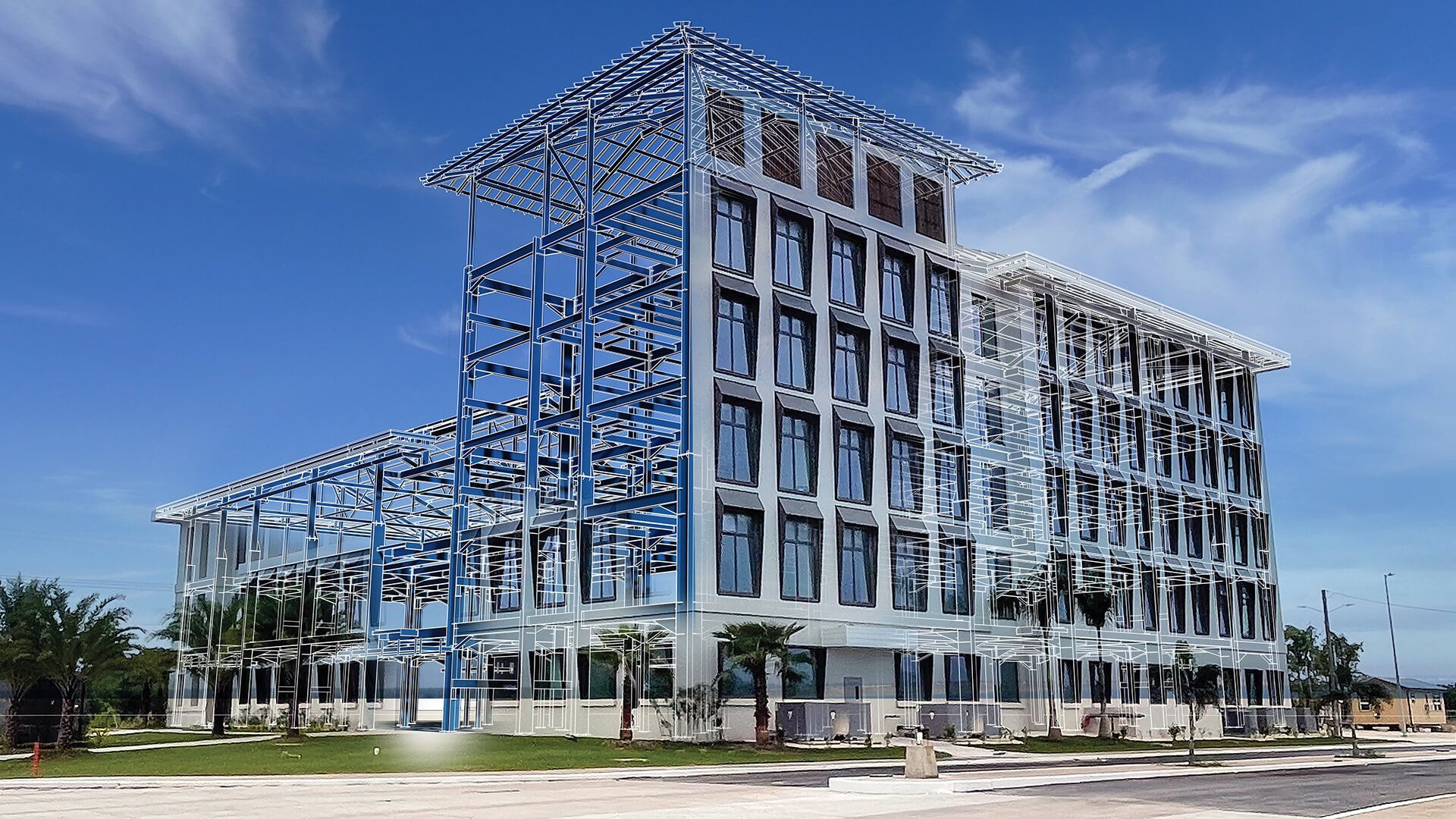

In 2020, we proudly supplied and contributed to the construction of a high-profile six-storey government building. This project was meticulously designed to British Standards and detailed by our Drawing Office using the latest Building Information Modelling (BIM) system. This intelligent, live 3D model-based system was instrumental in developing the engineering and construction plan.

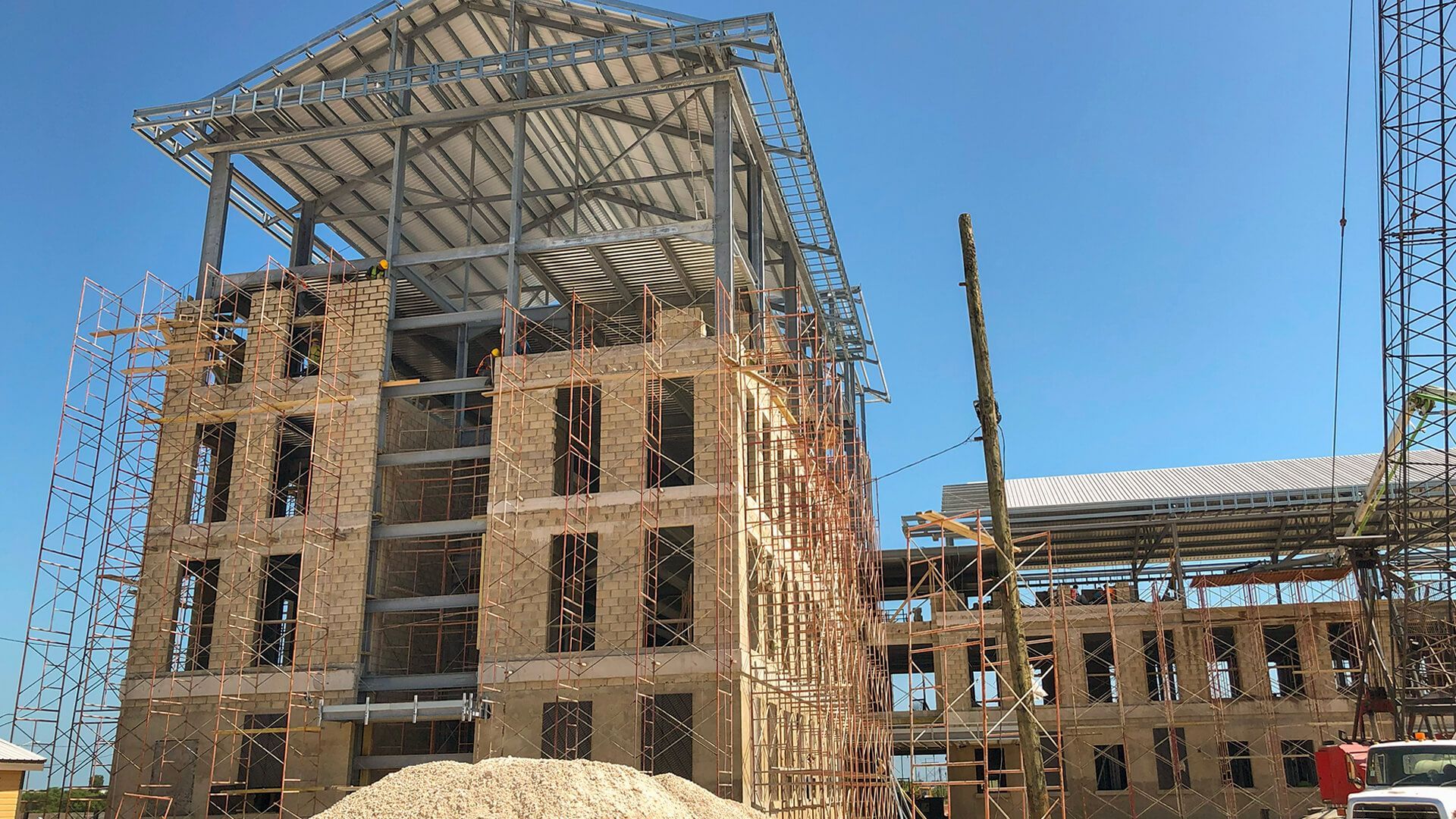

The building’s installation was carried out by a local contractor, with the support of our overseas supervisors. The entire steel-framed structure comprises approximately 350 tonnes of steelwork, including columns, rafters, floor beams, floor joists, and metal floor decking. The floors utilise a composite metal decking system, suitable for cast-in-situ construction, achieving 1 and a ½ hours of fire protection.


Designed to withstand hurricane winds and seismic activity, the building’s resilience is a testament to our engineering expertise. All hot-rolled steel components were hot-dip galvanised for maintenance-free longevity and shipped in open-top containers.


The insulated roof features double skin steel cladding with a central architectural roof feature, constructed in steel and protected with a powder-coated Satin Anodise paint finish. The walls were built locally using rendered masonry block-work for a smooth finish.


We also supplied the custom-made glazing system, specifically designed for the local environment. The project utilised Sungaurd SN70/35 glass, which offers excellent solar protection while reducing the need for internal artificial lighting. This glass allows 70% light transmittance and only 30% solar energy transmittance, making it ideal for the building’s location.

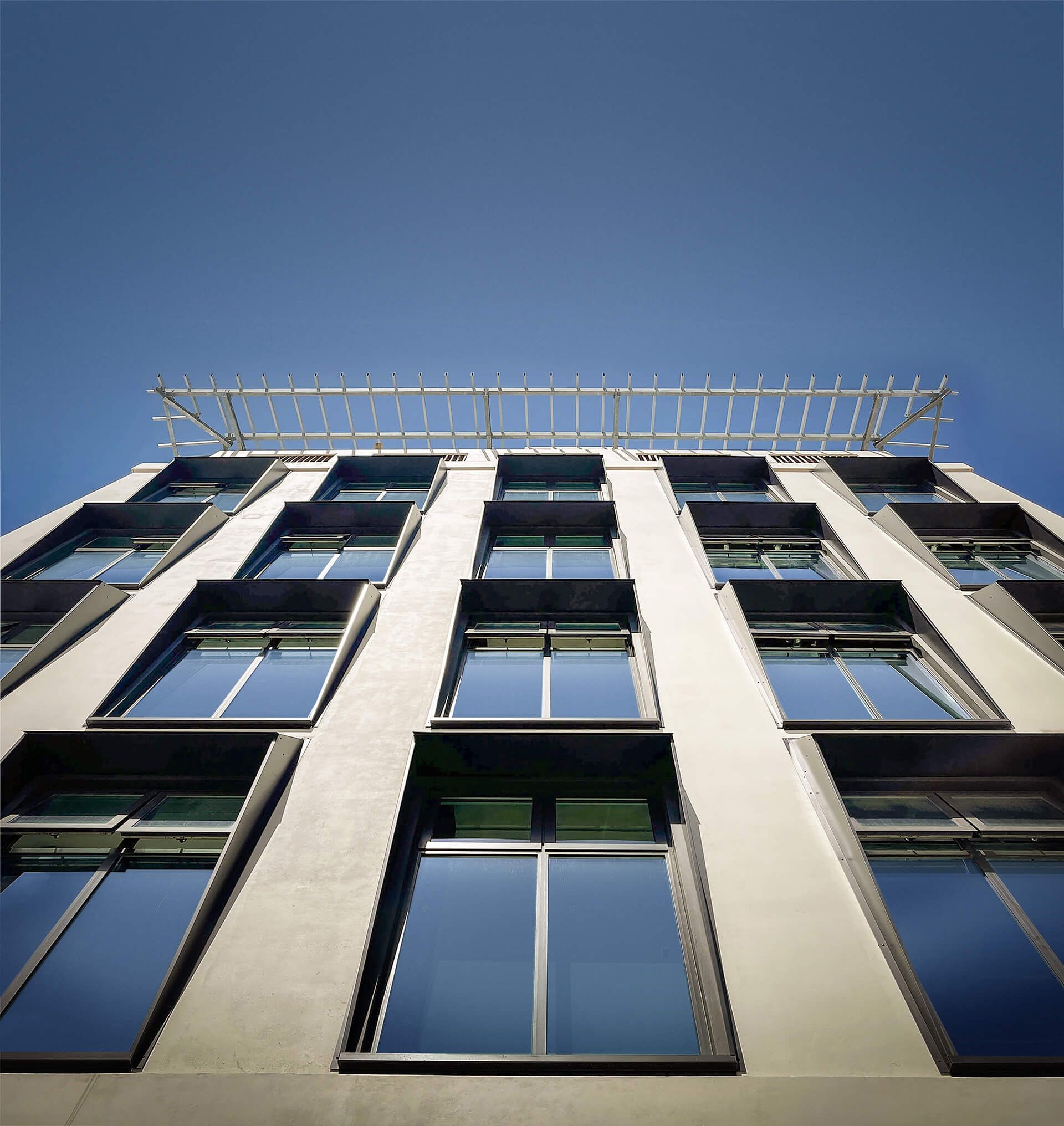

Additionally, we provided all the formed aluminium panels that shade the windows, offering extra protection against solar and light transmittance.

This project highlights our commitment to delivering high-quality, durable, and innovative construction solutions tailored to meet the specific needs of our clients and their environments.


Ref: 118696-G58

REIDsteel Elements
Structural Design / Detailing .
Structural Steelwork .
Roof Cladding .
Mezzanine Floors & Staircases .
Glazing & Aluminium Window Shades .
Installation .
