Kibimba Bridge - Africa

Providing infrastructure solutions to rural communities.


The Kibimba Bridge was part of a larger project involving several bridges

for the local National Roads Authority, that helped to provide upgraded

infrastructure solutions to rural communities.


We were involved in the design, fabrication, and delivery of all the bridges

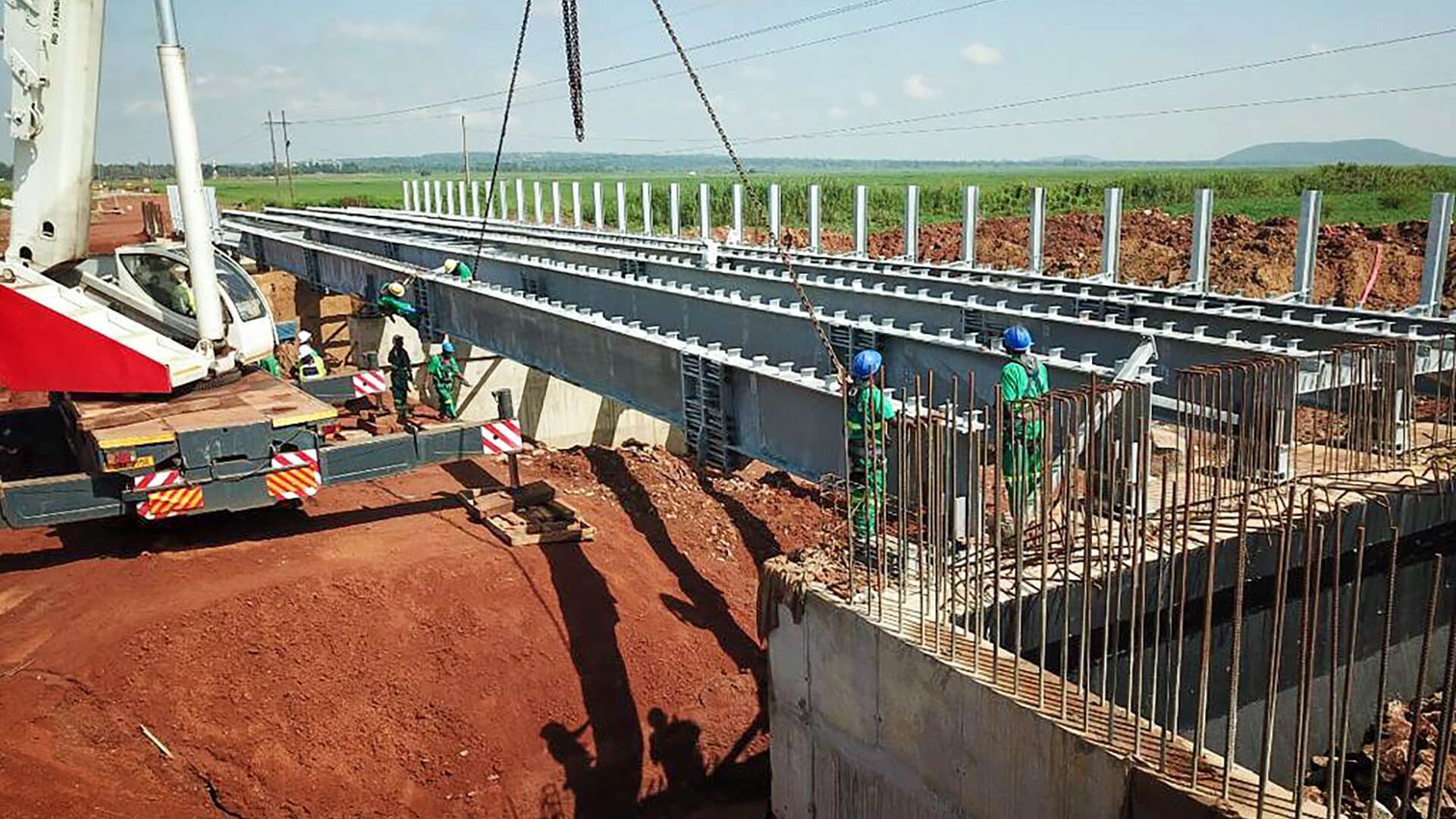

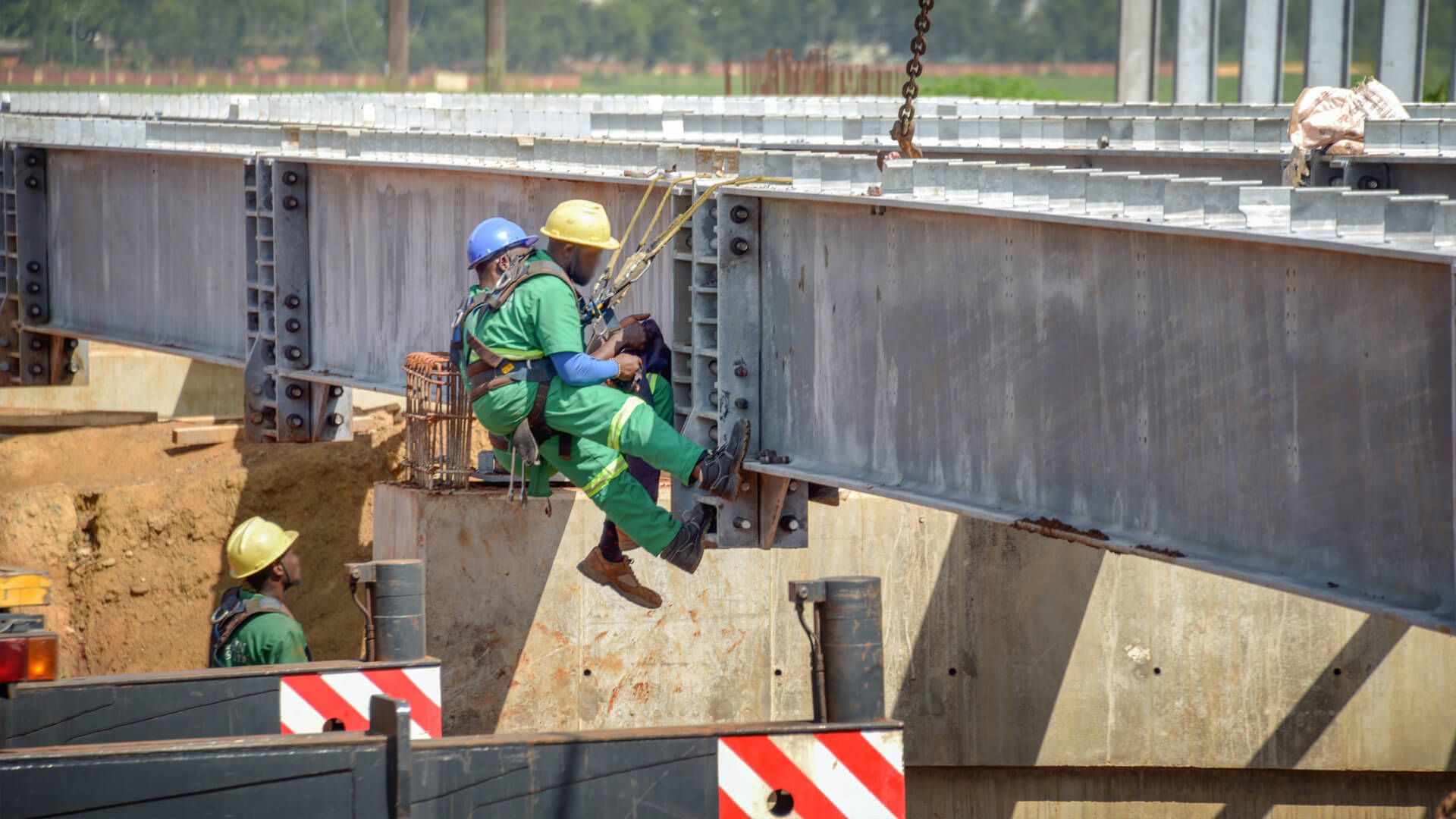

within this project. They were installed by local teams, boosting the

economy and creating jobs for local people.

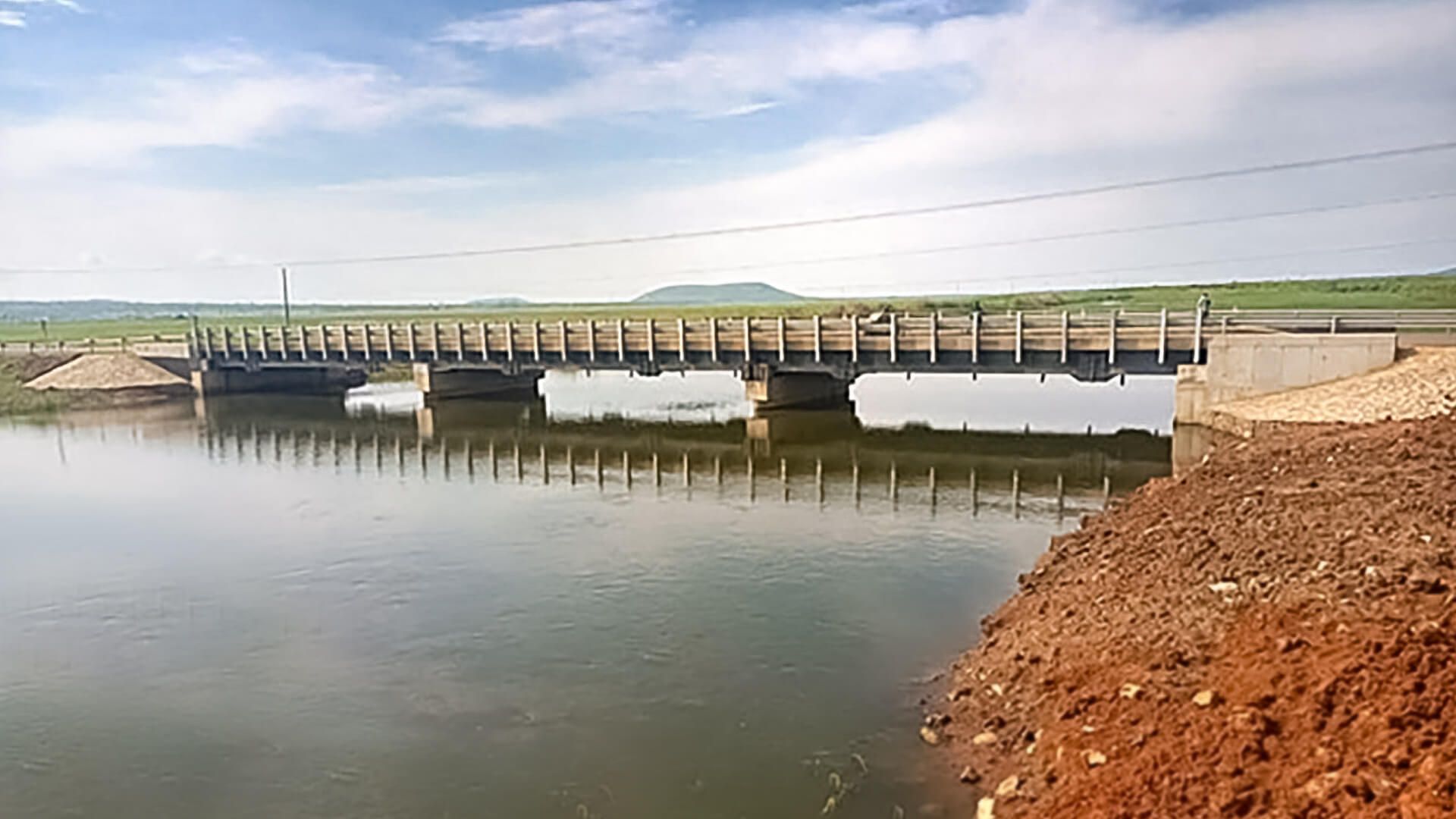

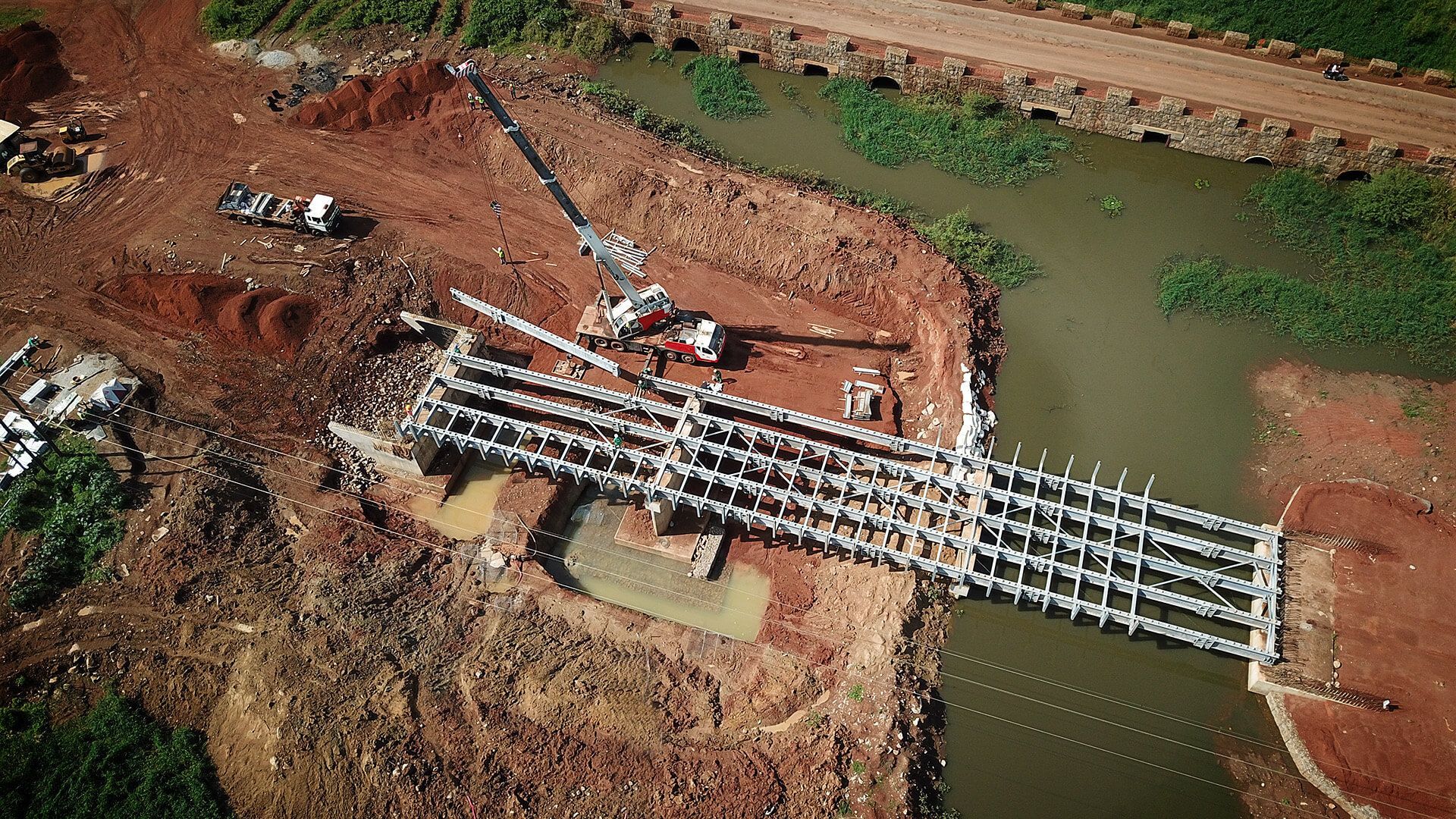

The bridge is 60m long, split into 3 spans of 20m. It is a composite steel bridge which has been hot dip galvanised and has an expected lifespanof over 120 years.

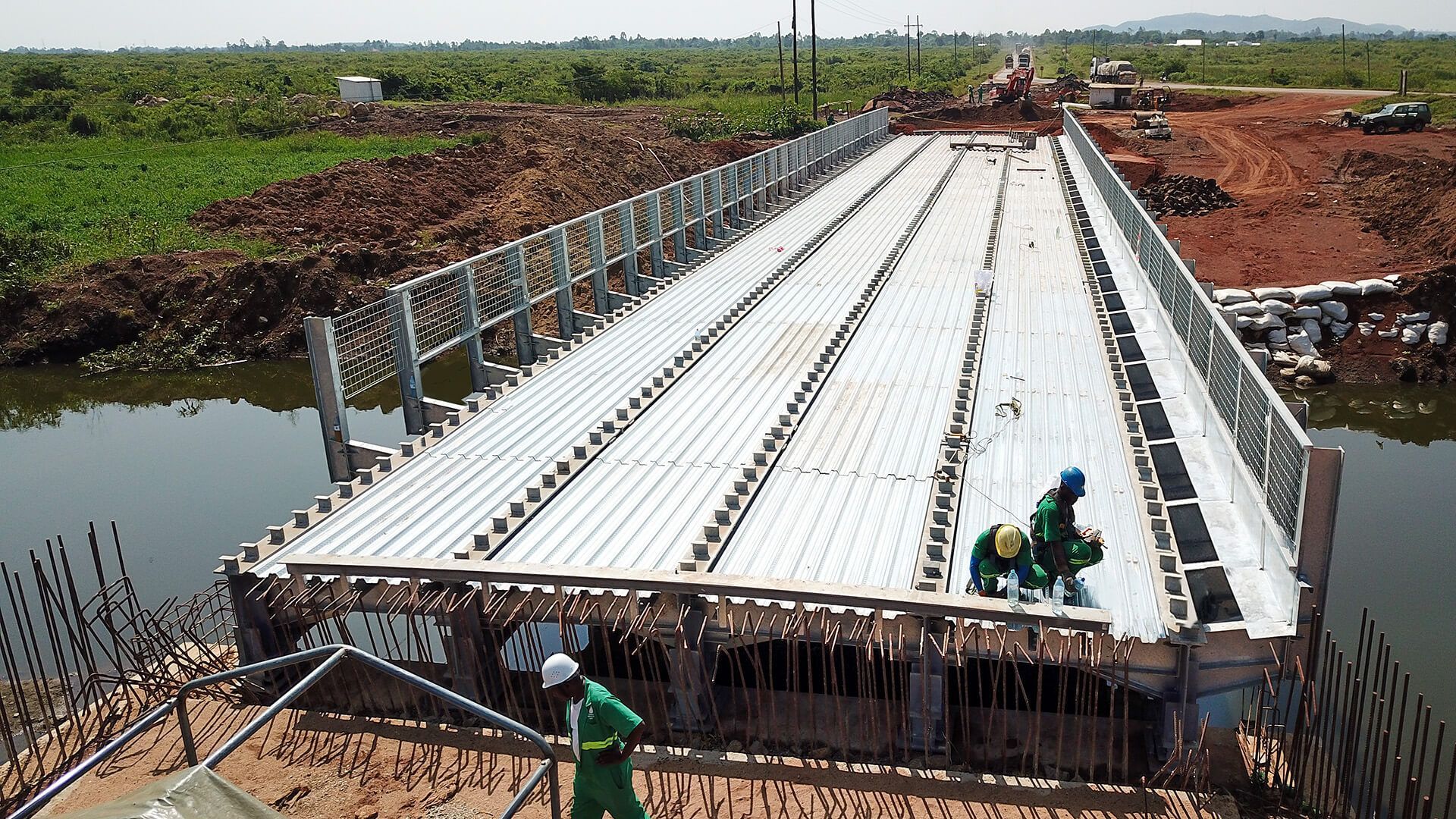

The bridge has an overall width of 10.5m, made up of a 7.5m carriageway that is comprised of 280mm reinforced deck with no propping.


This is located between the 1.5m kerbs each side that act as pedestrian walkways. We have provided these walkways with metal handrails, and crash rail fences that are strong enough to resist any vehicular impact.


Ref: 118738-G82



REIDsteel Elements
Conceptual Design .
Structural Design & Detailing .
Structural Steelwork .
Packing & Shipping

Gary Christian • May 16, 2022
