High Bay Workshop - UK

Twin 25 T SWL overhead cranes

We built this 60m x 25m workshop for a client located in the North

West of England.


This high bay workshop is designed to accommodate two electric

overhead traveling cranes, each with a SWL capacity of 25 t onnes.

These will allow the client to develop their offering to clients, as well

as enhancing their existing fabrication facilities.

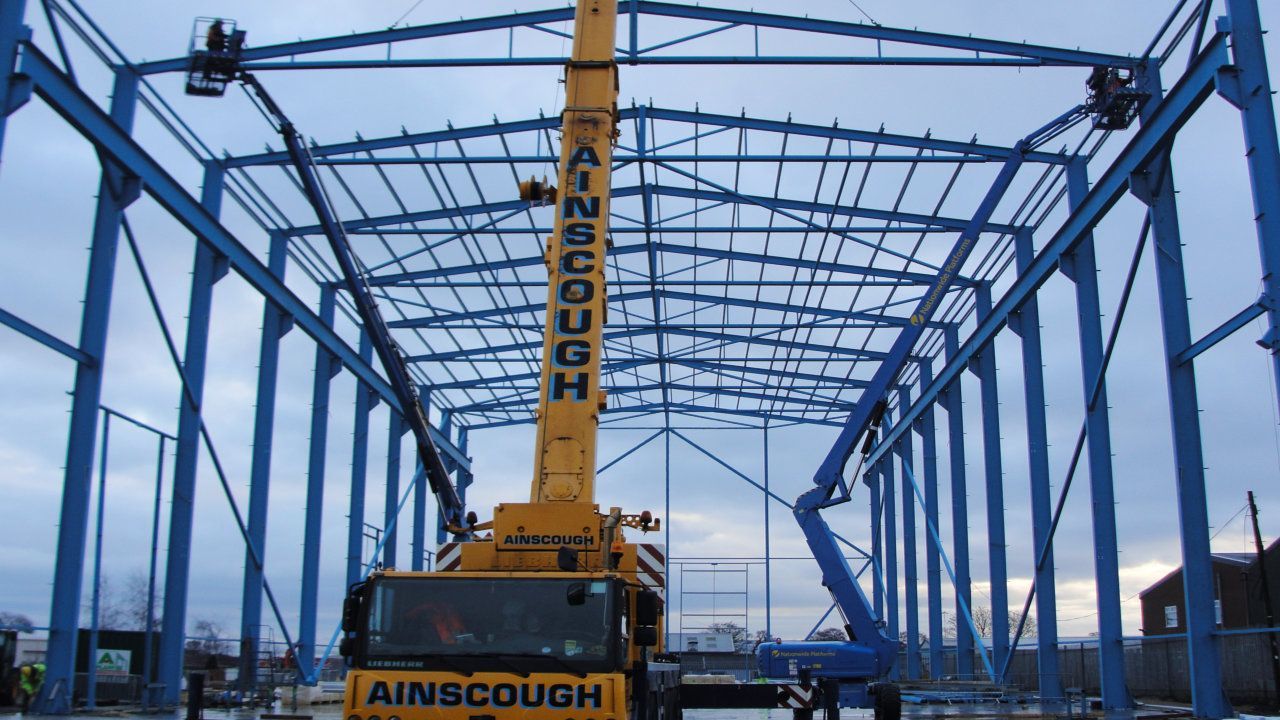

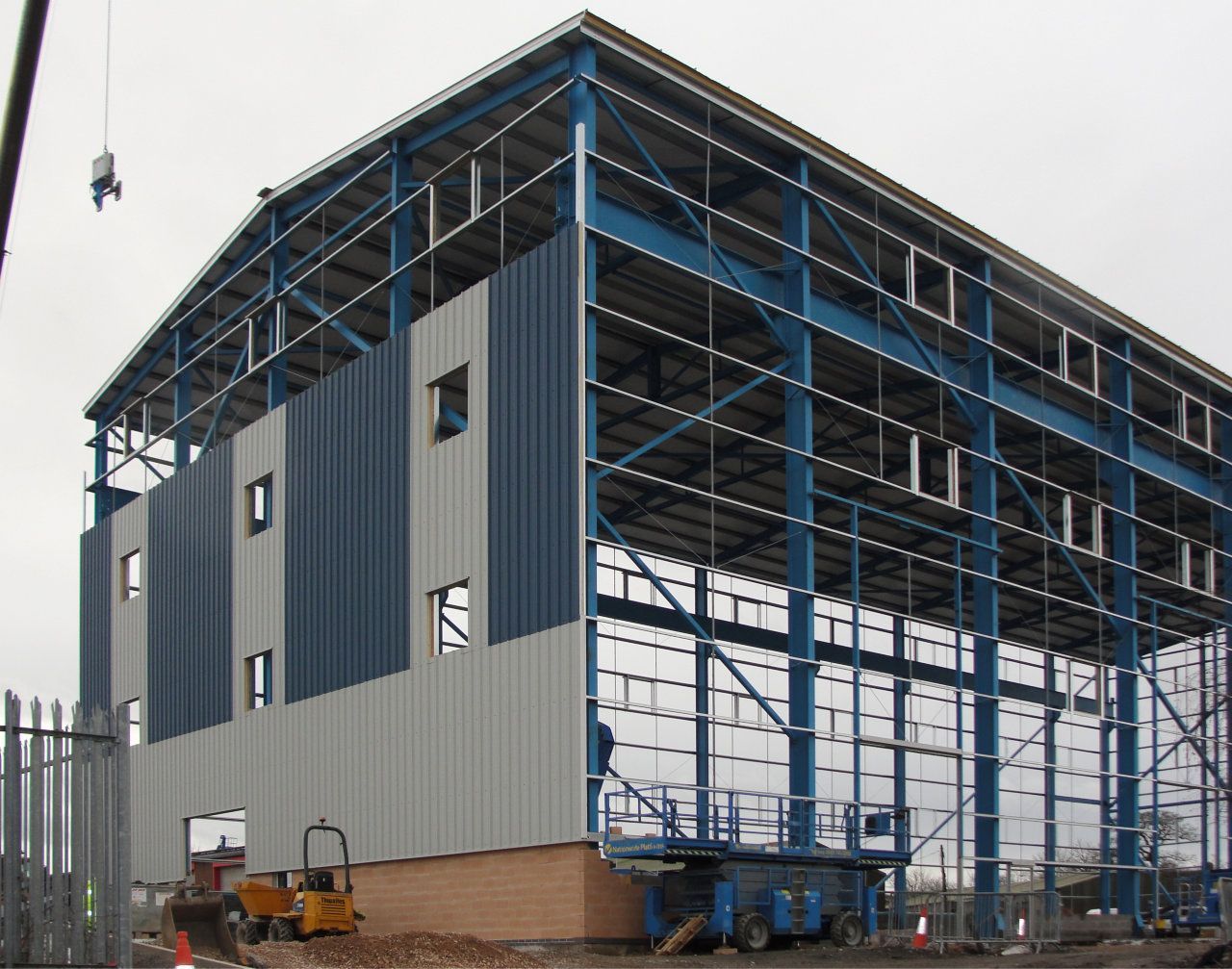

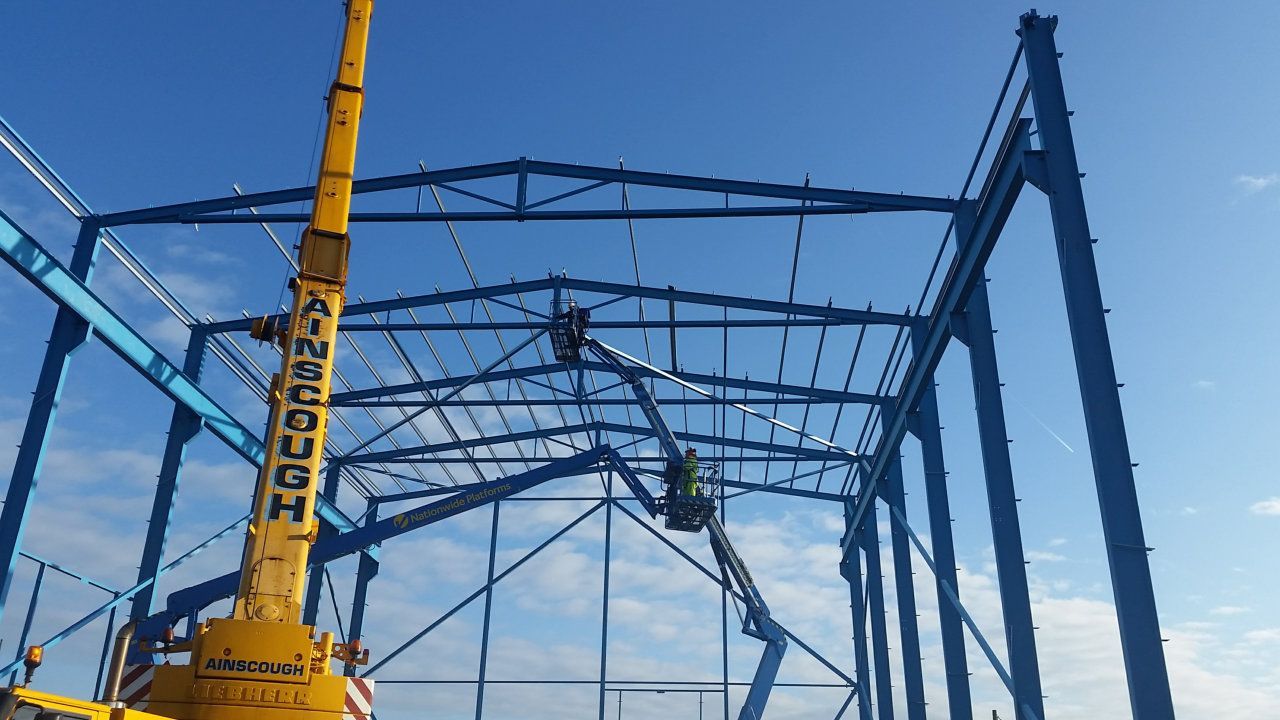

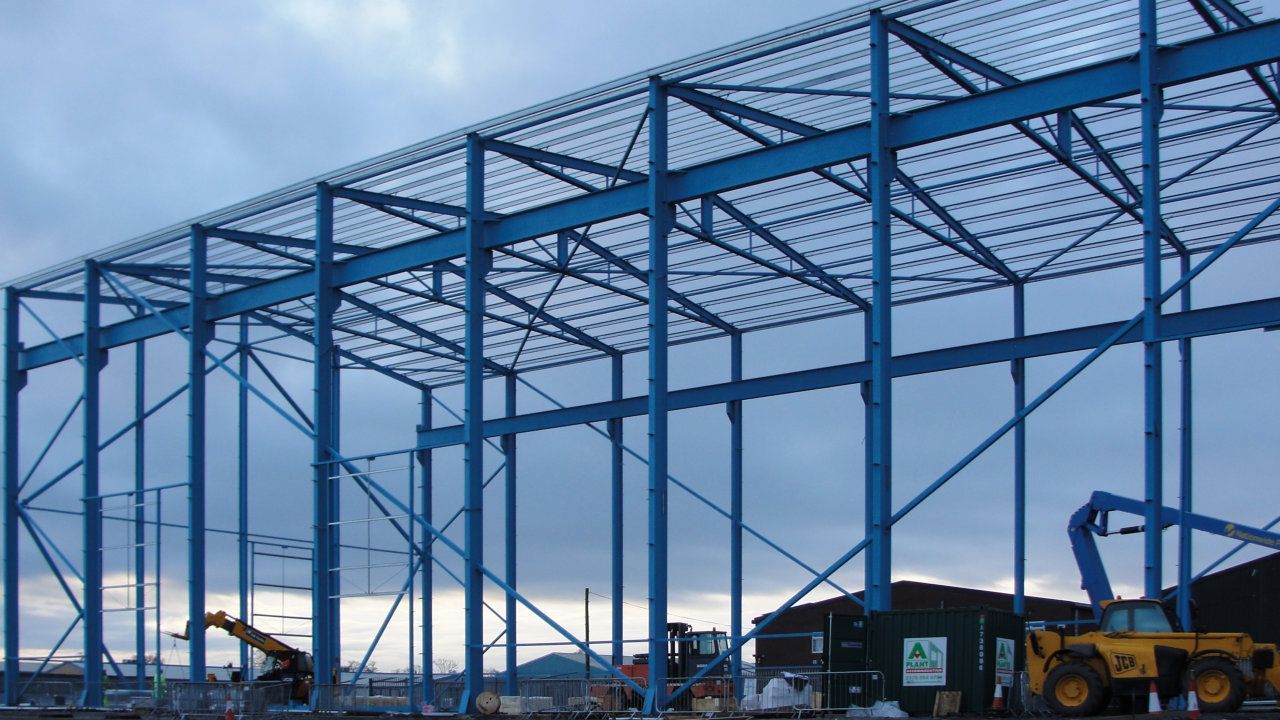

On this project we designed, detailed, fabricated, and erected the

steel frame, wall and roof cladding, glazing system and a hangar door.

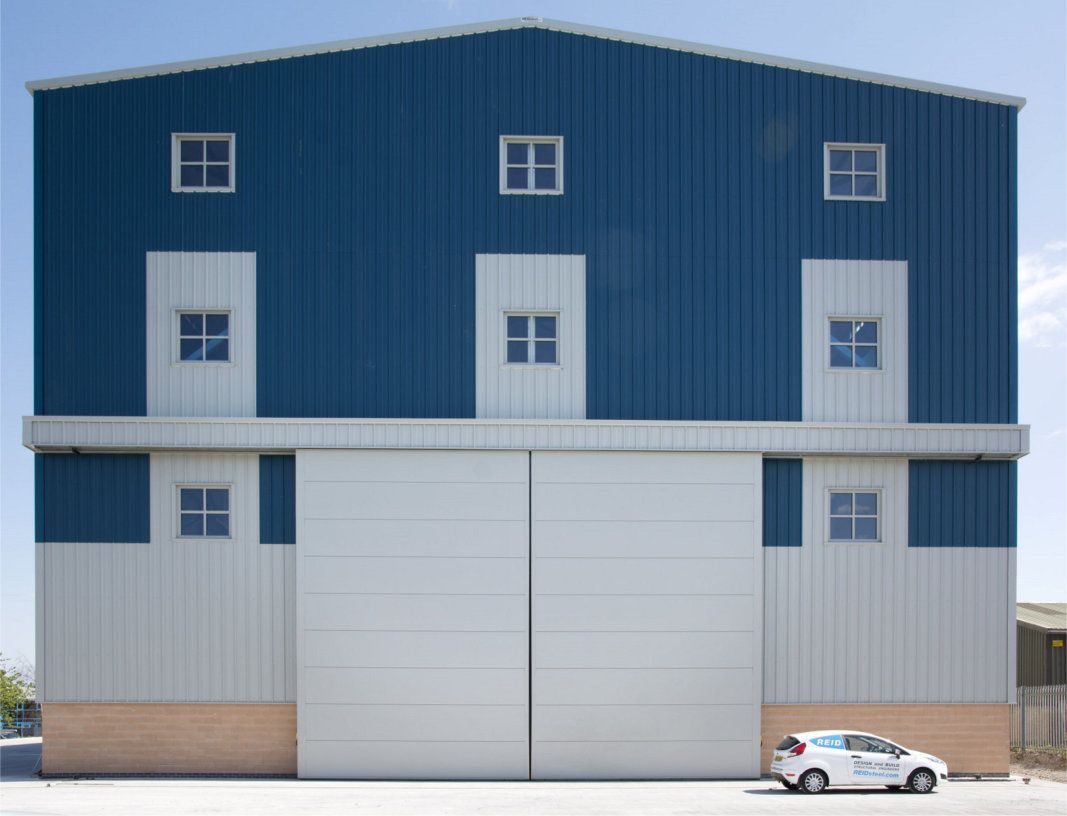

Our electrically operated hangar door is installed at one end of the

building, providing a clear opening of 12m by 9m making it simple for

the client to move work into and out of the structure. We also installed

a number of smaller vehicle access doors and personnel doors.

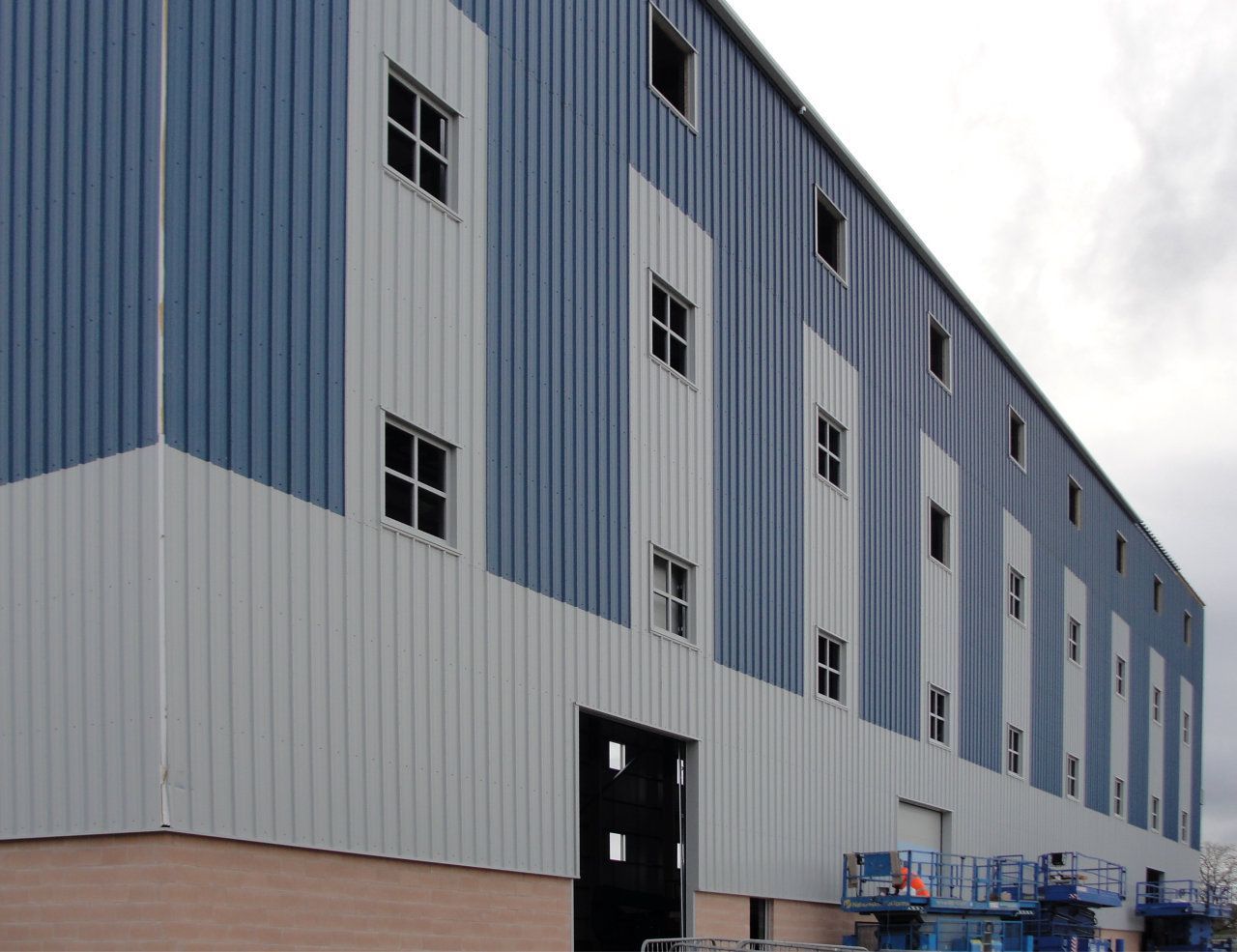

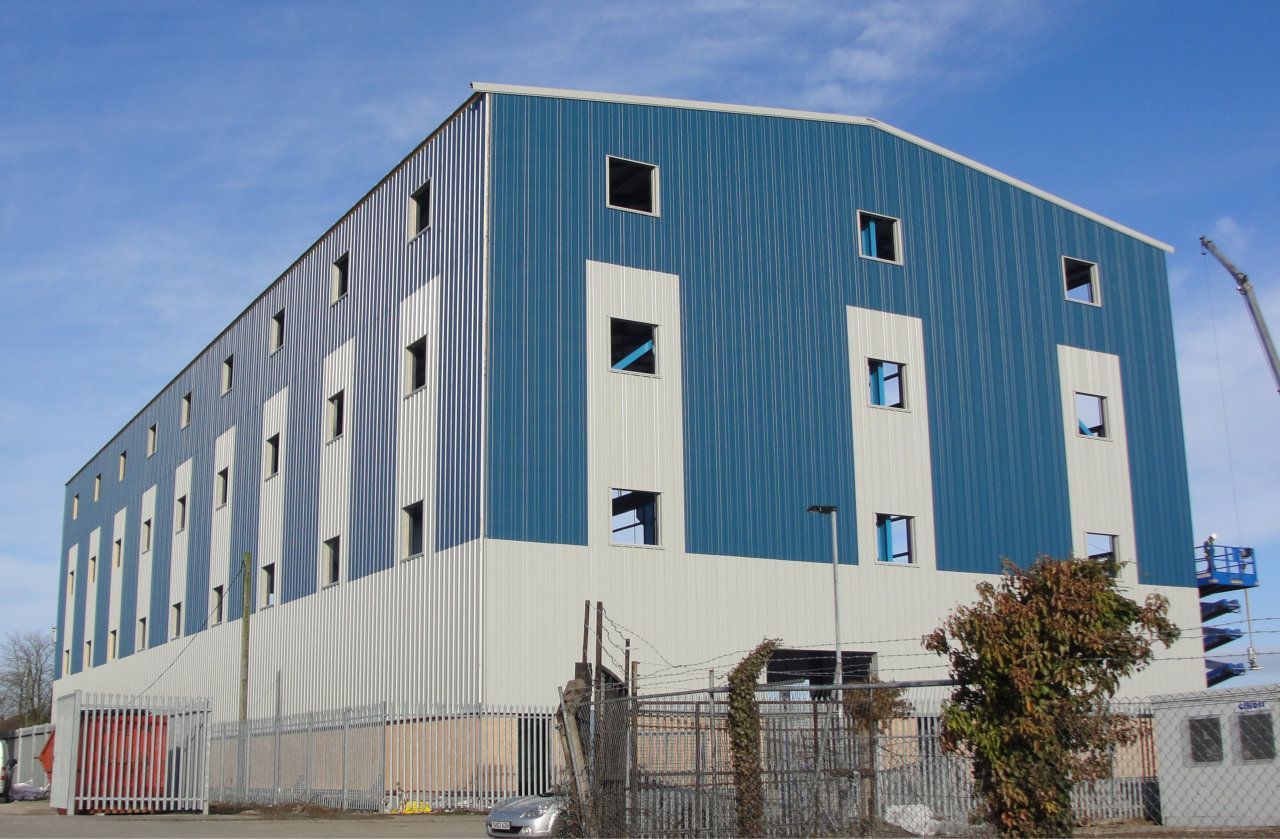

One of the main features of this building is the dual colour wall

scheme which is punctuated by 71 windows.


We commenced work on this project early in the year and despite

weather conditions hampering our progress we completed the build

on schedule. We were assisted in this by the client providing and

maintaining excellent ground conditions which is important at any time

of year, but especially on a winter build like this one.



Ref: 118402

REIDsteel Elements
Structural Design & Detailing .
Primary Steel Superstructure .
Secondary Steel .
Fabrication .
Roof & Wall Cladding .
Packing & Delivery .
Installation .
Gary Christian • April 5, 2017
